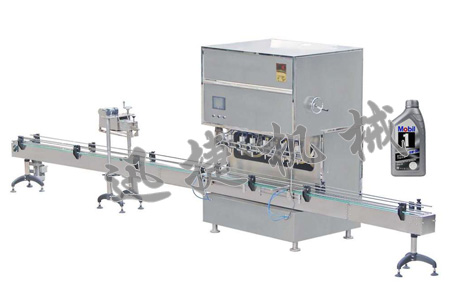

Quantitative oil filling machine can be automatic transmission, automatic CNC automatic filling and capping, light inspection. Can add buy auto cover, automatic printing, automatic labeling, small characters out of the box, automatic automatic packing, sealing, printing as one of the major characters of nc quantitative oil filling production line. Suitable for different size of the oil factory of small packaging products packaging.

CNC quantitative oil filling machine features:
1, use 2 ‰ precision roots flowmeter with high-precision pulse encoder. Mitsubishi programmable controller PLC and colorful display touch-screen terminal, the measuring and filling control system more accurate, and reliable;
Type 2, terminal display from discrete to agglomeration and regulation with screen display, convenient operation; Terminal display operation platform, and USES the Chinese menu, man-machine interface respectively set parameters, working status, help information, fault alarm functions, touch screen operation, intuitive easy; Operating system for one of the most advanced domestic current, bringing save function, change the specifications without cumbersome to adjust parameters, save time and effort.
3, measuring system of AD hoc static compensation function. The former logistics based on the actual pressure setting of schedule, the latter automatic compensation caused by temperature difference between logistics volume deviation, so as to effectively ensure filling the precision of the measurement;
4, unique designed for without dripping on the new linear filling head and back into the vacuum system, to ensure that the scene and packaging the finished product is not affected by the residual liquid pollution;
5, and how quickly a two-speed filling amount, can be set in a random, effectively solve the pump pressure filling fast steam bubble overflow bottle phenomenon;
6, electricity, gas main parts adopt imported high-quality goods components, to ensure the reliability of the system operation, accuracy, stability and durability.
7, oil parameters can be adjusted, and is not affected by climate.
8, 0.38 L and 6 L small package filling machine.

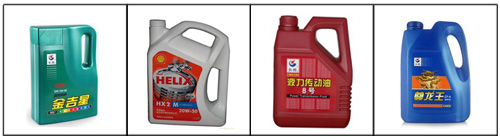

 The oil filler filling effect:
