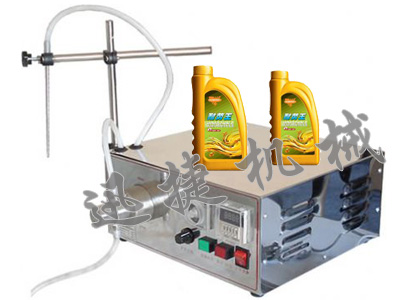

Small base oil filling machine adopts micro self-priming pump, using microcomputer to control the working time of pump and intermittent time, automatic quantitative filling, automatically set filling time of equipment. Can be used to filling of lubricating oil, base oil and other oil products, also suitable for corrosive liquids. Resistance to acid and alkali.
Small base oil filling machine has simple structure, convenient operation, and also feeding mouth can be extended, any mobile filling hose, can satisfy the above 5 grams of unlimited capacity, is a reliable and durable filling equipment, often apply to small businesses and small shops, such as family use. Can be custom-made stretch hose mobile filling, convenient and practical.

Technical parameters:
Working power supply: AC220V
Power: 160 w
Delay range: 0.01 s to 0.01 s
Count range: 1 ~ 59999 times
Working pattern: electricity delay data application Settings
On the display mode: filling time, according to the bottom of intermittent time, according to discharge counter
Dimension: 460 * 300 * 330 mm
Weight: 12 kg
Filling head diameter: 10 mm (such as the need can be customized, 4 mm, 6 mm, 8 mm)
The body material: stainless steel

 Small base oil filling machine method of use: ready for filling of base oil, connected to 220 v power supply, adjust good filling period, and intermittent time, timer, the switch at the first trial, the motor work properly, according to the manual button, with the foot switch control the filler work, step, the filler work time, press automatic, automatic filling machine according to the set time continuous work.


Small base oil filling machine operation steps:
1, the filling time to adjust: a press set key, the first time, press the add key 0-9, set the time needed for the position. B then right shift, to the designated position, press the add key to adjust the time, repeated operation. C press unit making before and after the decimal point, determine the unit of time d press exit, set up complete.
2, as the intermittent time adjustment and the filling time adjustment
3, the adjustment of the timer: a. press set key, the timer, press the add key 0-9 to adjust the bit number, press the right shift regulate the number of other position, set the desired number. B. press mode key, when the light is bright, filling to the specified number, filling machine stop working. When not bright, continuous work and counting.

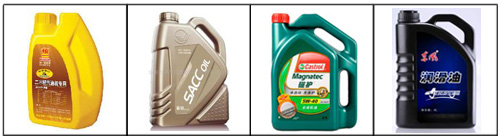

Filling effect:
