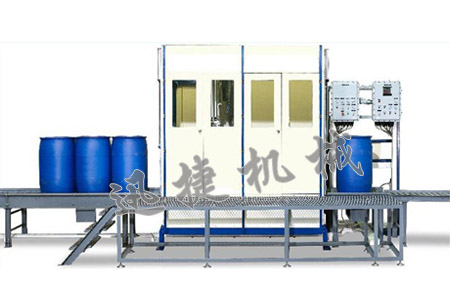

Introduction: straight-line hydraulic oil filling line is suitable for lubricating oil, diesel oil, gear oil, brake oil, engine oil, hydraulic oil and other liquid filling material.

Features:

The liquid surface (surface) filling way;

One by one or more filling at the same time;

Can automatically find mouth, positioning to skin, slow, fast filling, filling materials, auxiliary screw cap, pallet and other soil sequence;

According to special explosion-proof material, corrosion resistance and so on assembly line;

Filling head is designed for filling type to the open, minimize export resistance;

Filling head is equipped with back to the suction function, filling head away from the surface back to the suction opening, residue on the mouth filling liquid back to receiving tank absorption;

Reduction gear design for backflow slows or plug flow or both, and depending on pump and pipeline on the scene;

To achieve the secondary reduction of schedule, and closed into the flow line, completely avoid liquid level height error;

Filling head in place before filling, avoid pail feeding;

Equipped with scale body protection, filling head misalignment barrel mouth will not damage the sensor;

In case of special circumstances, through the emergency stop can be stopped manually filling;

Technical parameters:

Weighing device: the biggest weight: 300 kg, minimal changes value: 20 g

Filling accuracy: and 100 g;

Rated speed: 40 barrels/hour (related to incoming dry degree, speed);

Basic conditions: the level of solid concrete floor, concrete thickness should be greater than 15 cm

Temperature range: - 10 ℃ to + 45 ℃

Relative humidity: < 95% (no condensation).

Working power supply, power supply of 220 v, 50 hz) to 5.5 kw.

Working gas source: pressure 0. 5 MPa and 0.1 MPa, gas consumption: 30 m3 / h

Material interface: (PN1.6 MPa, providing the flange standard.

Feed pressure (0. 2 ` 0. 6) MPa (and sexual).

Air interface: users with G1/2 internal thread, used for quick joint connection.

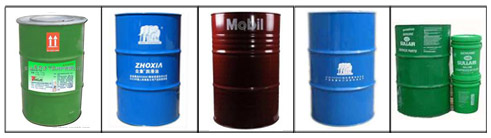

Results show:
